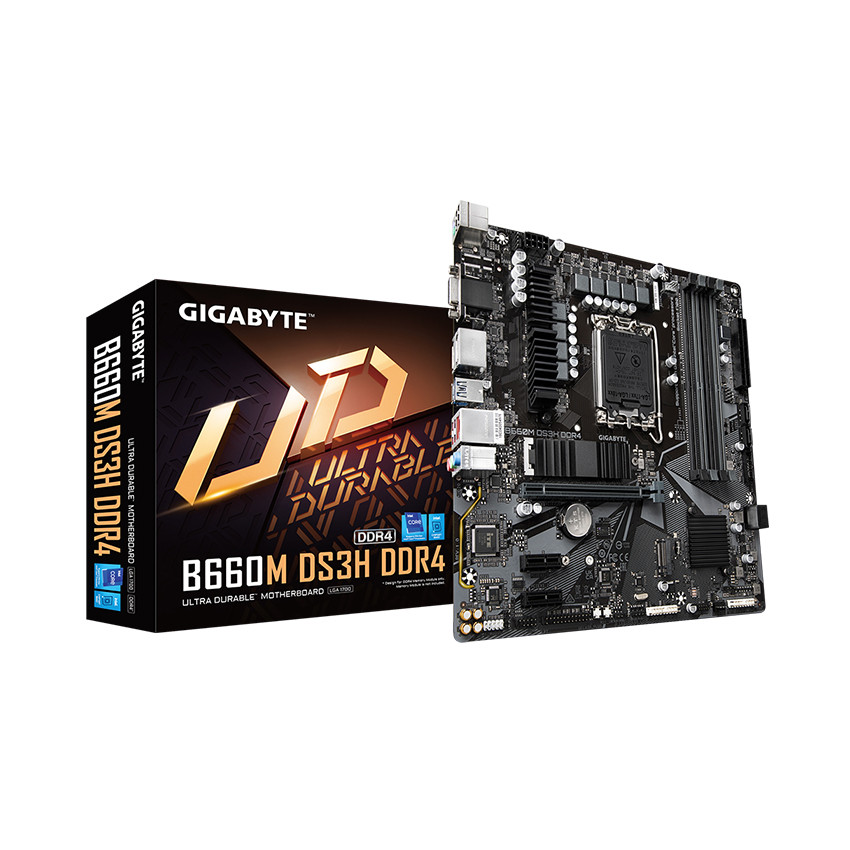

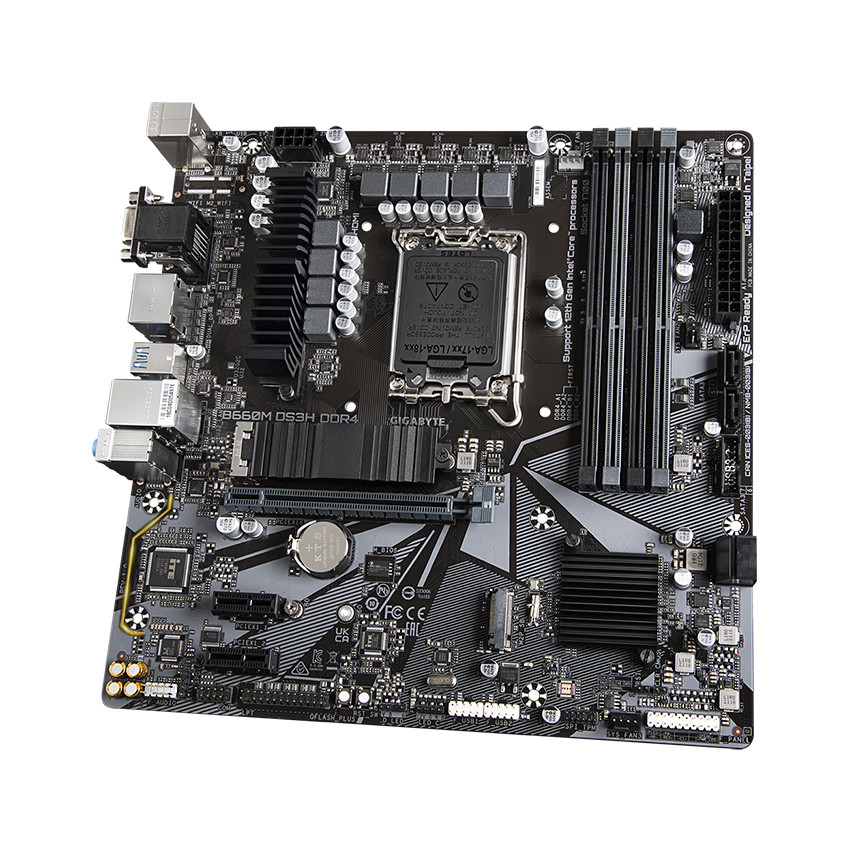

Bo mạch chủ máy tính Mainboard Gigabyte B660M DS3H DDR4

Giới thiệu sản phẩm Đánh giá - Bình luận

Thông tin sản phẩm bo mạch chủ Mainboard Gigabyte B660M DS3H DDR4 chính hãng tại MBC

Sản phẩm	Bo mạch chủ máy tính
Tên Hãng	Gigabyte
Model	B660M DS3H DDR4
CPU hỗ trợ	Intel
Chipset	B660
RAM hỗ trợ	Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

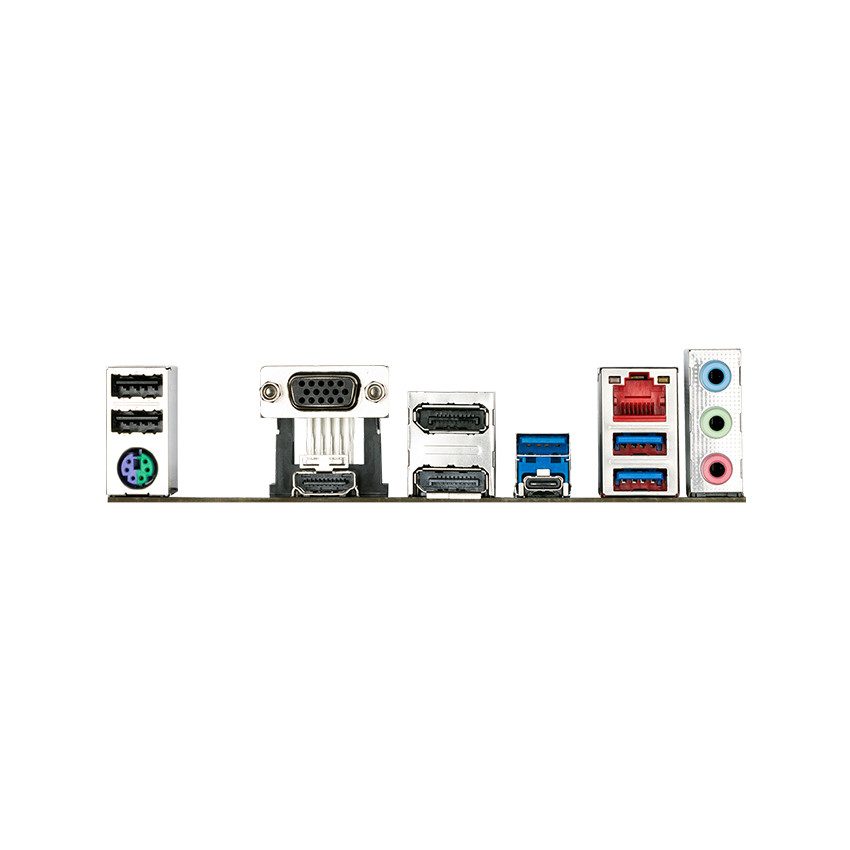

Cổng kết nối (Back Panel)	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C^® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ	Micro ATX Form Factor; 24.4cm x 24.4cm
